The Ultralight 1103 AC will extend your trip, save your arms, help you fight currents and wind, and get you to your favourite fishing spot quicker. It's up to 30% faster than the Ultralight 403. It's light, waterproof and easy to use, and has real-time range and run-time display.
The Ultralight 1103 AC fits on all popular types of kayak and canoes, and there are special models for special requirements.

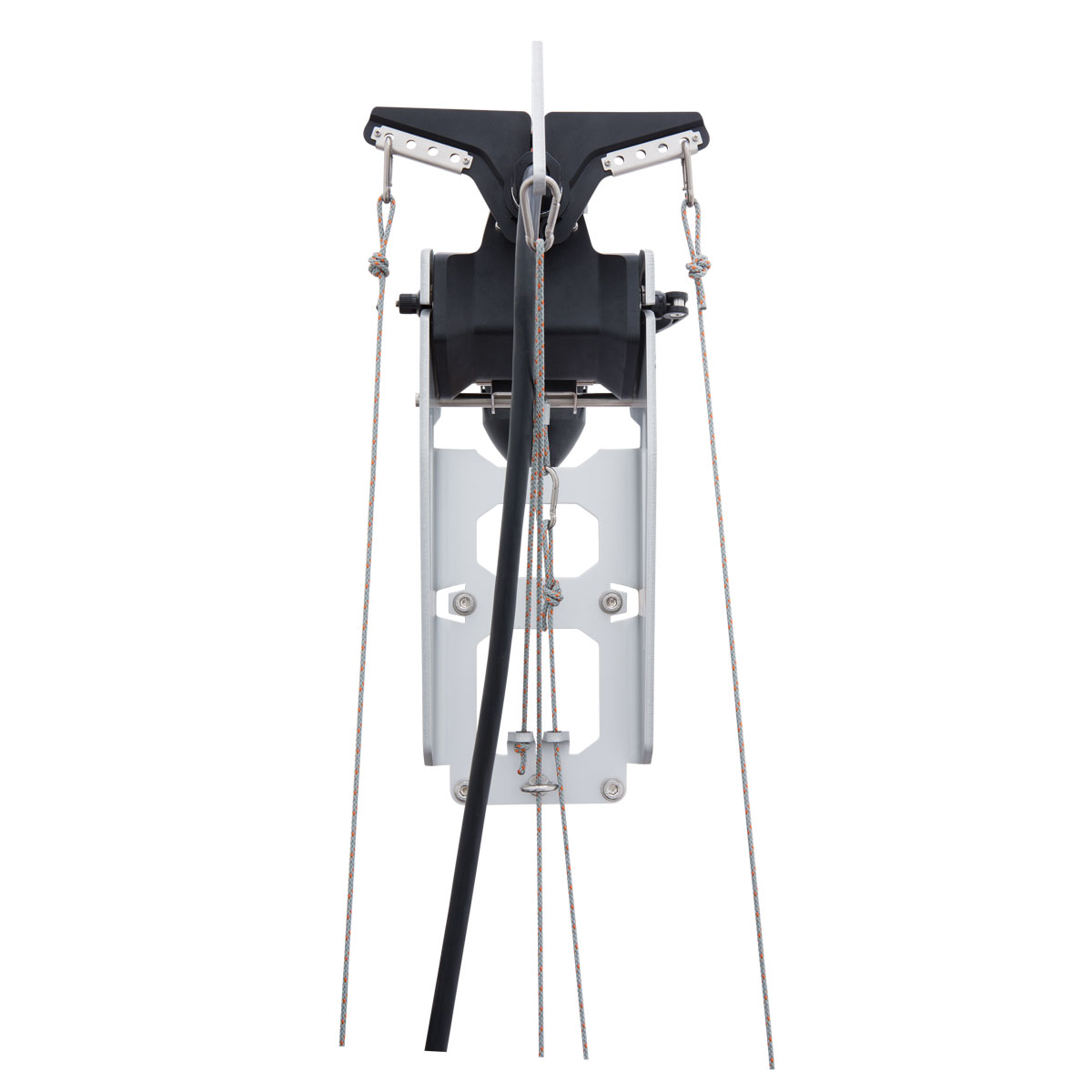

- Innovative new angler mount
- Weighs 15.3 kg including the battery
- Easy to mount on fishing kayaks
- 3 HP equivalent
- With integrated 915 Wh high-performance lithium battery
- Comes with charger, remote throttle, on-board computer, GPS-based range calculation, emergency magnetic stop key and bag
- Steering /tilting /auto-kickup – easy integration with your kayak's steering system
- Extended navigation functions of the on-board computer with TorqTrac (not included)
- Up to 50 km range

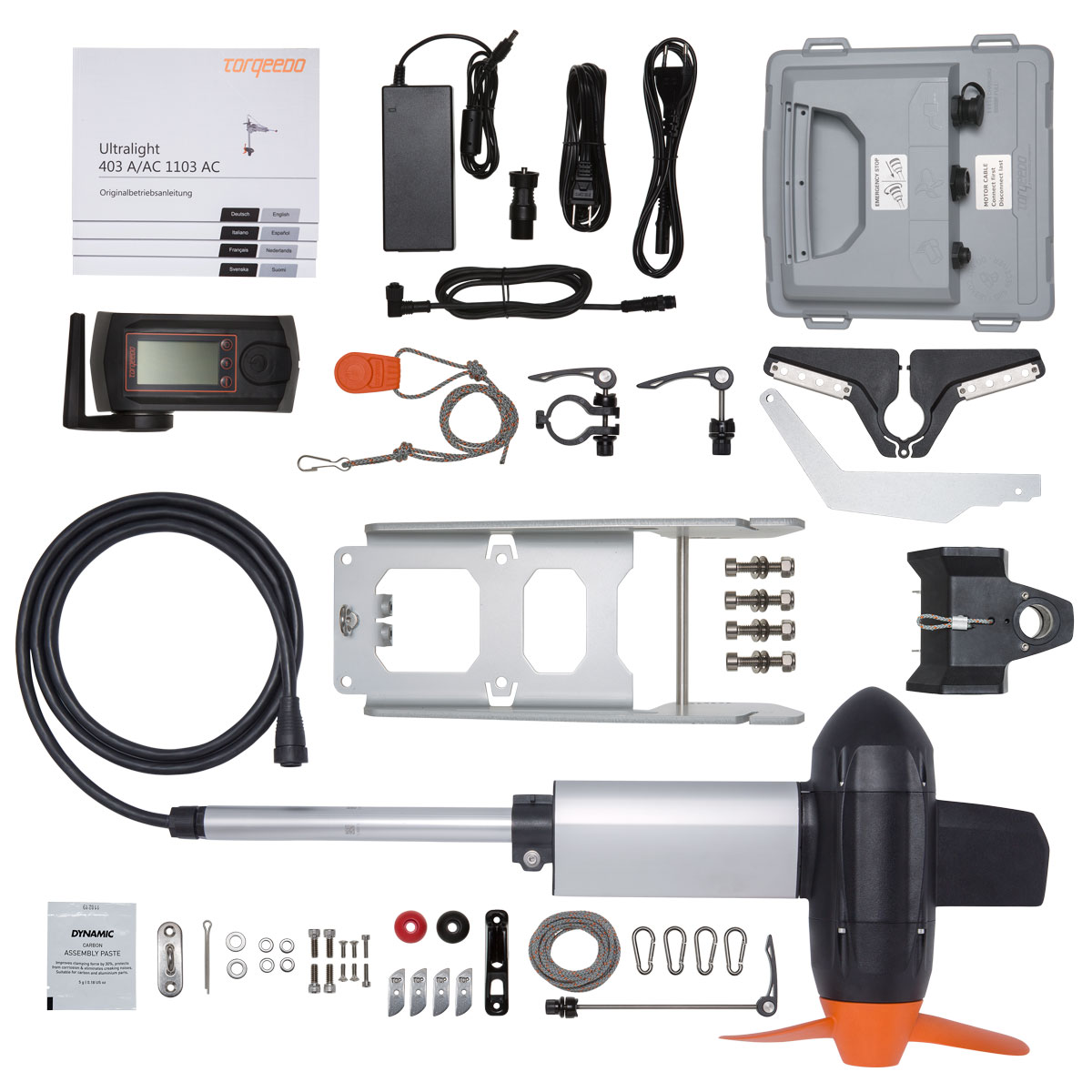

Equipment included: Ultralight 1103 AC with charger, remote throttle, on-board computer, GPS-based range calculation, emergency magnetic stop key and bag, 915 Wh battery
Range Estimates
|
|
Speed in km/h* |
Range in km* |
Running time in hours |
| Slow |
5.8
|
53.3 |
09:11 |
| Half throttle |
10.9 |
15.9
|
01:28
|
| Full throttle |
12.5
|
10.4
|
00:48
|
Technical Data Ultralight
| Input power in watts |
1100
|
| Propulsive power in watts |
540
|
| Comparable petrol outboards (propulsive power) |
3 HP |
| Maximum overall efficiency in % |
49 |
| Static thrust in lbs* |
|
| Integrated battery |
915 Wh Li-Ion |
| Nominal voltage |
29.6 |
| Final charging voltage |
33.6 |
| Total weight in kg |
15.3 |
| Motor weight without battery in kg |
9.3 |
| Weight of integrated battery |
6.0 |
| Shaft length in cm |
51 |
Standard propeller
(v = speed in km/h at p = power in watts) |
v10/p1100 |
| Maximum propeller speed in rpm |
1,450 |
| Control |
Throttle |
| Steering |
Provision to connect to kayak rudder; lockable |
| Tilting device |
Manual with grounding protection |
| Trim device |
Manual, 4-step |
| Stepless forward/reverse drive |
Yes |
| Integrated on-board computer |
Yes |
Warranty: 2 years for non-commercial use
